Pillow plate heat exchangers offer an efficient, robust, and versatile solution for industrial heat transfer applications. Especially when dealing with fluctuating media flows or contaminated process streams, they have substantial advantages over traditional heat exchangers regarding maintenance, energy efficiency, and process reliability.
Pillow Plate Heat Exchange Systems

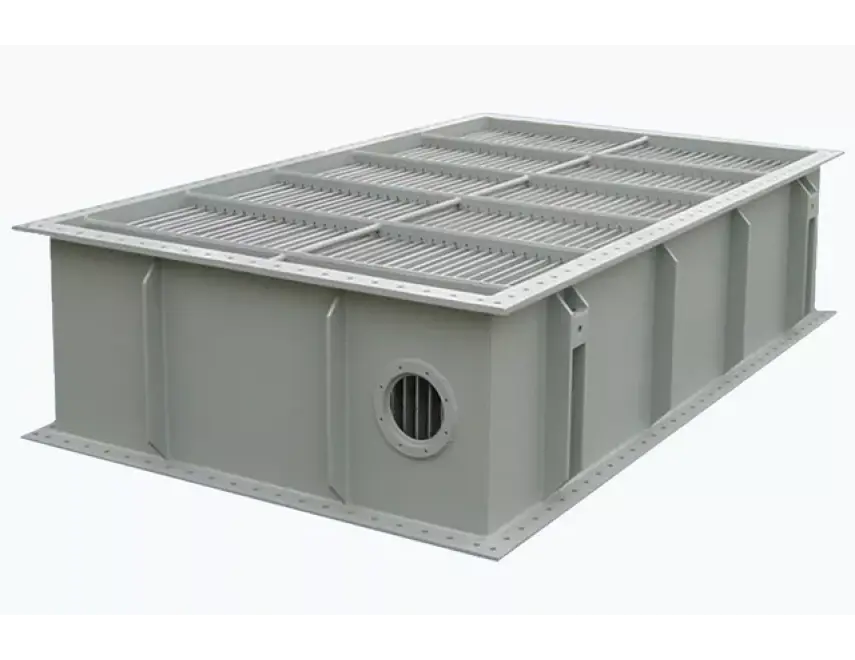

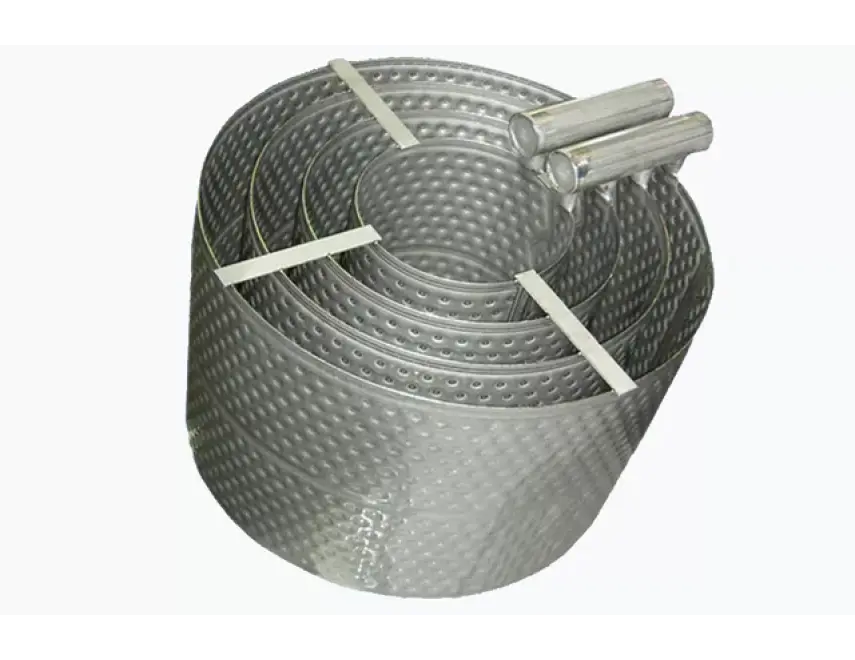

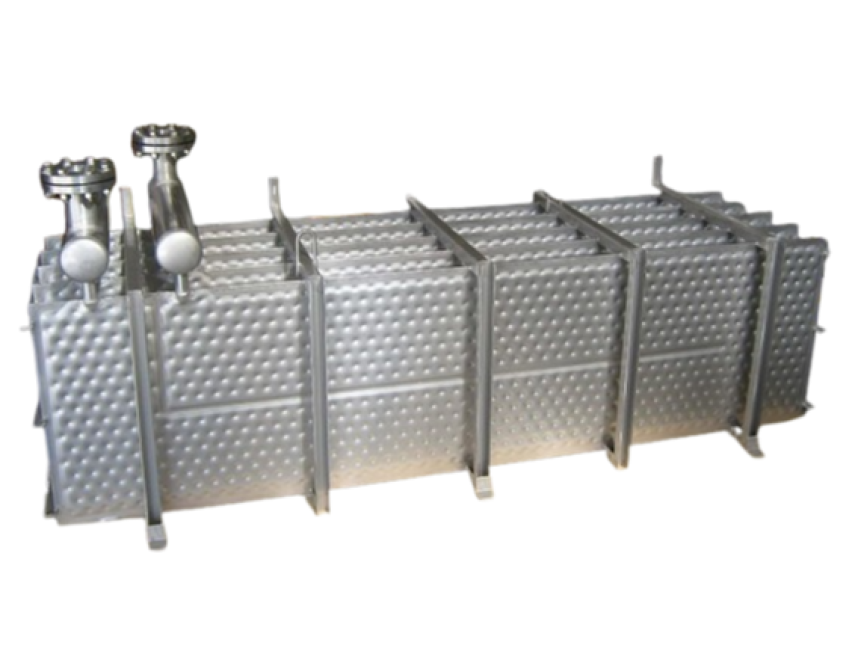

Pillow plate heat exchange systems are based on double-profiled thermal sheets (called pillow plates), which, through variably welded constructions, provide a large, structured surface for heat transfer. Unlike conventional shell-and-tube or plate heat exchangers, pillow plate systems offer maximum flexibility in terms of form, size, and material and can be tailored to each process’s requirements. They are especially efficient with problematic media and provide minimal clogging tendency and easy cleaning, as the media flows over the large, low-resistance corrugated surfaces. These systems also feature high resistance to pressure and temperature fluctuations without sacrificing stability, combined with very high k-values due to the minimal pressure drop and enlarged surface area.
Application fields
Industrial chilling of food: fish, meet, poultry / fruit, vegetables / milk, milk products / softdrink production / production of baked goods
Chilling in the production of: chemicals - pharmaceuticals
Industrial thermal engineering: heat recovery, heat pump evaporators, aporators
Product leaflets: Heat Exchange Systems
Dimple Plates

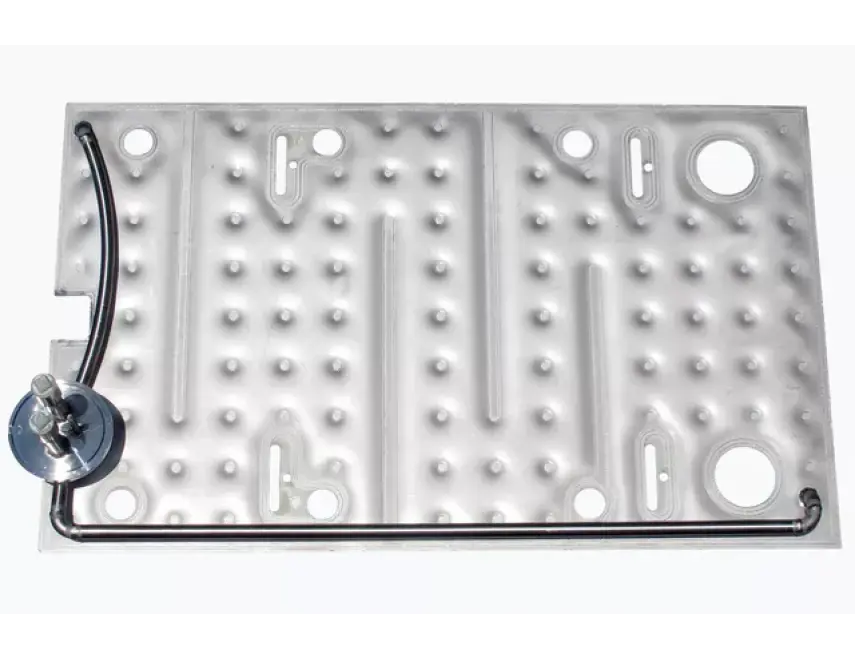

A dimple plate is a preformed plate that is subsequently attached to an end product. It is often used for heat transfer applications, similar to pillow plates. The main difference lies in the production time and the application possibilities.
- Outstanding heat transfer efficiency with a high heat transfer coefficient (U-value).
- High durability and safety: Fully stainless steel structure with an all-welded design and double-sealed welds, ensuring equipment longevity.
- Easy operation and maintenance: Maintains stable efficiency even with contaminated media, while allowing quick inspection and cleaning.
Application fields
Industrial chilling of food: fish, meet, poultry / fruit, vegetables / milk, milk products / softdrink production / production of baked goods
Chilling in the production of: chemicals - pharmaceuticals
Product leaflets: Dimple Plates
